Separates oil, water and solids.

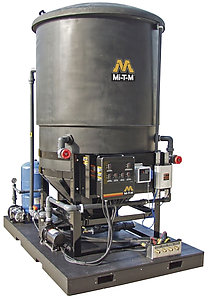

Mi-T-M’s popular BIO Series System utilizes fixed-film bacteria in conjunction with coalescing media. Various tank sizes and flow rates are used to create retention time for the treatment of wastewater. Oxygen is supplied to the bacteria in the waste stream by venturi injection.
Mi-T-M manufactures a wash-water recycle system with enhanced design technology offering:
·Cone-shaped tank for easy handling of accumulated solids
·Quality recycle wash-water without common odor problems
·Easy operation and maintenance that saves you time and money
·Conveniently located instrument panel and controls (CSA listed)
·Heavy-duty, corrosive-resistant and UV-resistant poly-skid
System provides efficient handling of tough organic applications, such as:
·Golf Courses - Designed to handle equipment wash-water for various golf course configurations
·Solid-Waste Haulers - Able to effectively treat wash-water, like that from garbage trucks
·Food Processing Plants - Pre-treatment of a broad range of food processing waste-water before discharging
·Petro-Chemical - Capable of treating waste streams containing multiple, organic particulate matter
·Anything with organic compounds in waste water
Components:
·CSA listed NEMA-4 rated corrosion-proof control panel for safe and reliable operation
·Peristaltic pump is self-priming for passive automatic liquid microbe injection. This feature drastically reduces the amount of hands-on operation time required
·Mazzei® venturi air injection system sustains beneficial aerobic microbes while preventing bacteria from turning odorous and anaerobic
Models Available:
BIO-15-0M10* 230V, 1Ø, 20.0A
BIO-15-0M30* 230V, 3Ø, 15.0A
*Includes sump pump and peristaltic pump
230/208/460V 3-phase available on all models as options
The Importance of a Proper Pit System:
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.
Consult Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.
| Flow Rate | 0-15 GPM |
| Clarifier Tank | 600-gallon |
| Media | 1300 sq. ft. |
| Sump Pump (Included) | 1.0 HP |
| Transfer Pump | 3/4 HP |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 1250.00 lbs. |
| Length | 60.00 in. |
| Width | 96.00 in. |
| Height | 110.00 in. |
Pinch Valve Assembly WX-0014
Pinch valve, bladder style (used on cone-bottom tanks), 2-inch, 230VAC, single phase, may be accommodated as 115VAC, single phase
550-Gallon Product Tank Expansion WX-0029
For when larger volume of usable water is needed
Ozone WX-0020
For specialized applications where sterilization of the waste stream is desired
Recirculation Option for Floats WX-0024
If used along with the WX-0042, water will recirculate from your product tank back to your pit
BIO Sump Pump Swap WX-0030
Customized option, converts surface mount sump pump to submersible sump pump, 1Ø, 230V
165-Gallon Water Tank Upgrade WX-0041
For when a larger volume of usable water is needed
Magnetic Drive Pump WX-0064
230V, 1Ø, seal-less
Magnetic Drive Pump WX-0065
208-230V, 3Ø seal-less
Magnetic Drive Pump WX-0066
460V, 3Ø seal-less
Pinch Valve Assembly WX-0039
Pinch valve, bladder style (used on cone-bottom tanks), 2-inch, 120VAC, single phase
pH Control System, 120V WX-0102
For when pH adjustment is needed
Product Tank Overflow WX-0042
Allows product water to cycle back to collection pit
BIO Sump Pump Swap WX-0101
Customized option, converts surface mount sump pump to submersible sump pump, 3Ø, 230V
High Solids Media WX-0119
Allows for debris to travel easily through media with vertical design
460V, 3Ø WX-0123
Upgrades 230V model to operate at 460V
Ozone WX-0044
For specialized applications where sterilization of the waste stream is desired
Ozone WX-0045
For specialized applications where sterilization of the waste stream is desired
Hour Meter WX-0128
Displays the number of hours unit has been in operation
Dual pH Control, 230V WX-0134
Two set points where pH can be adjusted
Dual pH Control, 115V WX-0135
Two set points where pH can be adjusted
250-Gallon Auxiliary Poly Tank WX-0142
Allows you to treat the BIO water with ozone in a separate poly tank
