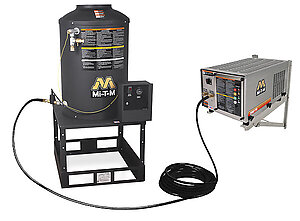

Heater Module Natural Gas/LP HGM Series HGM-3506-0E10

HGM-3506-0E10

Convert your cold water pressure washer into a hot water unit whenever the need arises with a heater module.  Each features a powder coated steel frame assembly and several fuel burner types are available.

Frame: Powder coated frame assembly · Fork truck accessible base

Components: Incoming power 120V single-phase · 24V control system · 1/2-inch schedule 80 vertical coil assembly · 12-foot x 3/8-inch jumper hose with quick connects to hook up to existing pressure washer

Additional Feature: Natural gas or LP gas-fired natural draft aspirating-type burner; 10-inch or 12-inch stack

Specifications

PSI 3500
GPM 6.0
Electrical Voltage/Phase/Amp 115V, 1Ø, 2.0A
Natural Gas BTU per hour 338,000
LP Gas BTU per hour 326,500
Mobility Stationary Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 346.00 lbs.
Shipping Weight 466.00 lbs.
Length 24.25 in.
Width 26.25 in.
Height 49.75 in.

Liquid Propane (vapor only) HX-0105

Converts natural gas pressure washer to operate on liquid propane (vapor only)

Stainless-Steel Coil Wrap HX-0116

Converts powder coated painted coil wrap to stainless-steel material

460V Incoming Power HX-0129

For when you have 460V of power available

575V Incoming Power HX-0177

For when you have 575V of power available

230V Incoming Power HX-0215

For when you have 230V of power available
