DH-2003-SE0E2M

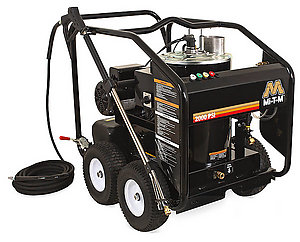

This electric pressure washer is built for industrial cleaning on sites where proper ventilation may not be accessible.  It features a top-fired heat exchanger that is completely accessible for troubleshooting.

Pump:  Direct drive triplex piston Mi-T-M pump with ceramic plungers · Stainless-steel and brass unloader · Forged brass manifold · Thermal relief valve

Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord

Frame: Reinforced powder coated steel tube frame with center balanced lifting hook · 13-inch flat-free tires

Components: Energy-efficient top-fired heat exchanger designed for convenient troubleshooting and easy maintenance · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects, swivel and bend restrictors · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off

MSRP: $5,815.00

Specifications

PSI 2000
GPM 2.8
Horsepower/Motor 4.0 HP, 230V, 1Ø, 18.0A
Pump Mi-T-M
Plug Type NEMA 6-20P
Burner Fuel Tank Capacity 4.0 gallon
Burner Fuel Consumption 1.48 gph
BTU Per Hour 207,200
Drive Type Direct Drive Pressure Washers
Mobility Portable Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 308.00 lbs.
Shipping Weight 431.00 lbs.
Length 43.00 in.
Width 29.50 in.
Height 36.50 in.

Adjustable Thermostat HX-0233

Operator is able to adjust outlet water temperature between 86°-248°F

Hour Meter HX-0235

Displays the number of hours unit has been in operation

300°F Steam HX-0241

Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F

Auto Start/Stop HX-0243

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

Time Delay Shutdown HX-0244

Timer will shut unit off automatically when trigger gun is released and timer reaches setting
