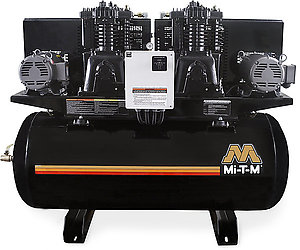

120-Gallon Two Stage Electric Horizontal ACD-20305-120H

ACD-20305-120H

The horizontal 120-gallon air compressors can be installed out of the way in service shops where compressed air is a required utility.  Powerful and efficient, they are designed to maximize production.

Compressor Pump: Two stage cast iron · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Motor: Industrial low RPM motor · Magnetic starter for thermal overload protection

Frame: Powder coated ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Powder coated totally enclosed belt guard

Components: 3 position switch - compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump) · ASME safety valves · Tank pressure gauge · Large fly wheel · Intake filter/silencer · Tank shut-off valve · Hour meter

Specifications

CFM @ 175 PSI 36.0
Horsepower/Motor 5.0 HP, 200V, 3Ø, 32.2A
Compressor Two Stage, cast iron
Tank Size 120-gallon
Mobility Stationary Air Compressors
Stage Two Stage Air Compressors

Weights & Dimensions

Net Weight 841.00 lbs.
Shipping Weight 920.00 lbs.
Length 74.00 in.
Width 26.50 in.
Height 58.00 in.

Vibration Isolator Pads IX-0001

Isolators protect the unit from vibration during use

Electric Tank Drain IX-0006

Automatically drains liquid from compressor tank

Low Oil Monitor IX-0008

Low-oil sensor does not allow unit to start when oil levels fall below an adequate level

Pneumatic Tank Drain IX-0032

Automatically drains liquid from compressor tank

After Cooler IX-0033

Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
