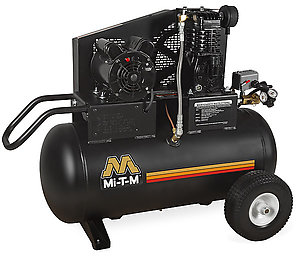

20-Gallon Single Stage Electric AM1-PE15-20M

AM1-PE15-20M

Designed for tough jobs with enough air capacity to run multiple air tools at once, this air compressor is easy to transport yet maintains the power needed for really big projects.

Compressor Pump: Quality cast iron single stage compressor · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Large canister intake filter · Stainless-steel braided discharge hose · Oil level sight indicator

Motor: Industrial UL-listed electric motor · Auto start/stop (continuous run optional) · Thermal overload motor protection

Frame: Powder coated ASME coded 20-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts · Convenient lifting handle · 10-inch flat-free tires

Components: Regulator and two gauges for tank and outlet pressure · 10-inch fly wheel for extra cooling and longer life · Manual drain valves for proper maintenance · Belt tightening system pulls engine straight to ensure constant belt alignment · Industrial grade pressure switch

Specifications

CFM @ 90 PSI 7.3
Horsepower/Motor 1.5 HP, 120V, 13.2A
Compressor Single stage, cast iron
Tank Size 20-gallon
Plug Type NEMA 5-15P
Mobility Portable Air Compressors
Stage Single Stage Air Compressors

Weights & Dimensions

Net Weight 196.00 lbs.
Shipping Weight 265.00 lbs.
Length 40.00 in.
Width 24.00 in.
Height 32.00 in.

Auto Drain/Regulator/Plastic Bowl AX-0002

Drains moisture from air system

Manual Drain/Regulator/Metal Bowl AX-0003

Drains moisture from air system

Dual Control AX-0008

Compressor can be operated in start/stop mode or continuous run where pilot valve exhausts air to atmosphere

Stationary Kit AX-0027

Converts the portable model to a stationary model, removes the wheels and adds the stationary leg
