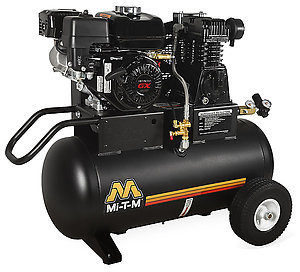

20-Gallon Single Stage Gasoline AM1-PH65-20M

AM1-PH65-20M

If you need a lot of air capacity on the go, this machine is for you.  This model features a powerful single stage compressor that is designed for maximum productivity.  It is the ideal tool for large construction sites.

Compressor Pump: Quality cast iron single stage compressor · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Large canister intake filter · Stainless-steel braided discharge hose · Oil level sight indicator

Engine: Industrial Honda GX200 OHV engine· Pneumatic idle control to conserve fuel

Frame: Powder coated ASME coded 20-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts · Convenient lifting handle · 10-inch flat-free tires

Components: Regulator and two gauges for tank and outlet pressure · 12-inch fly wheel for extra cooling and longer life · Manual drain valves for proper maintenance · Belt tightening system pulls engine straight to ensure constant belt alignment · Quality pilot valve unloader

Specifications

CFM @ 90 PSI 13.9
Displacement/Engine 196cc Honda GX200 OHV
Compressor Single stage, cast iron
Tank Size 20-gallon
Engine Idle Control Pneumatic
Mobility Portable Air Compressors
Stage Single Stage Air Compressors

Weights & Dimensions

Net Weight 212.00 lbs.
Shipping Weight 272.00 lbs.
Length 37.00 in.
Width 23.50 in.
Height 33.00 in.

Manual Drain/Regulator/Metal Bowl AX-0003

Drains moisture from air system

Stationary Kit AX-0027

Converts the portable model to a stationary model, removes the wheels and adds the stationary leg
