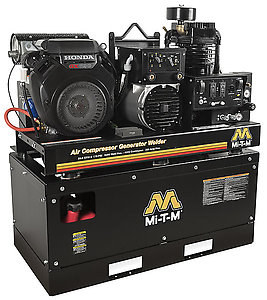

20-Gallon Two Stage Gasoline AGW-SH22-20M

AGW-SH22-20M

Dependable high quality equipment is vital in every industry because it saves both time and money. The combination air compressor, generator, and arc welder is the ideal tool for working on emergency field repairs in remote locations.

Operation
Generator Mode: AC current only · Selector switch set to idle down · Switch is set to full throttle

Welder Mode: DC current only · Engine must be running full throttle · Selector switch must be set to full throttle

Features
Compressor Pump: Stainless-steel braided discharge hose · Splash lubricated · Large canister intake filter · Oil level sight indicator

Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings

Welder: Amperage selection switch, 170A or 220A maximum

Frame: Powder coated ASME coded receiver tanks · 14-gauge powder coated belt guard

Components: Manual drain valves for proper maintenance · Regulator and two gauges for tank and outlet pressure · 16.5-inch fly wheel

Equipped with 150-PSI maximum rated regulator.

Specifications

Displacement/Engine 688cc Honda GX690 OHV with electric start - cables are included; battery not included
Rated Speed 3600 RPM
CFM @ 90 PSI 30.5
CFM @ 175 PSI 29.0
Compressor Two Stage, cast iron
Tank Size 20-gallon receiver tank
Maximum AC Output 5000 watts
Rated AC Output 4500 watts
Alternator Wattage Continous On-Load @ 90 PSI 4500 watts
Alternator Wattage Continous On-Load @ 175 PSI 4500 watts
Frequency/Voltage 60Hz/120V/240V
Maximum Amps (120V/240V) 41.5/20.8
Continuous Amps (120V/240V) 37.5/18.8
Receptacles (2) 120V 20A GFCI duplex; (1) 120V/240V 20A twist lock
Duty Cycle (10 Minute Run Time) 220A @ 40%, 190A @ 60%, 150A @100%
DC Voltage 50-220A Working Range
Fuel Tank 10 gallon

Weights & Dimensions

Net Weight 803.00 lbs.
Shipping Weight 870.00 lbs.
Length 47.00 in.
Width 24.00 in.
Height 50.00 in.

Vibration Isolator Pads IX-0001

Isolators protect the unit from vibration during use
