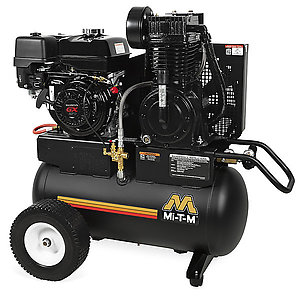

20-Gallon Two Stage Gasoline AM2-PH09-20M

AM2-PH09-20M

This model features a powerful and efficient two stage compressor designed to maximize productivity.  The versatility of the 20-gallon air compressor offers extra air storage and comes in stationary or portable models.

Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head and cylinder for extended durability · Large canister intake filter · Stainless-steel braided discharge hose · Oil level sight indicator

Engine: Industrial Honda GX270 OHV engine (electric start optional) · Engine oil drain · Pneumatic idle control to conserve fuel

Frame: Powder coated ASME coded 20-gallon receiver tank · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts · Convenient lifting handle · 13-inch flat-free tires

Components: Regulator and two gauges for tank and outlet pressure · 16.5-inch fly wheel for extra cooling and longer life · Manual drain valves for proper maintenance · Belt tightening system pulls engine straight to ensure constant belt alignment · Quality pilot valve unloader

*Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ 175 PSI 17.2
Displacement/Engine 270cc Honda GX270 OHV
Compressor Two Stage, cast iron
Tank Size 20-gallon
Engine Idle Control Pneumatic
Mobility Portable Air Compressors
Stage Two Stage Air Compressors

Weights & Dimensions

Net Weight 306.00 lbs.
Shipping Weight 356.00 lbs.
Length 46.00 in.
Width 26.00 in.
Height 39.50 in.

Manual Drain/Regulator/Metal Bowl AX-0003

Drains moisture from air system

Electric Start (battery and cables not included) AX-0015

For easy starting

Electric Start (battery and cables included) AX-0017

For easy starting

Remote Start/Choke IX-0055

Remote start/choke; 6-foot wire extension for key switch; you will also need to order electric start option, AX-0015
