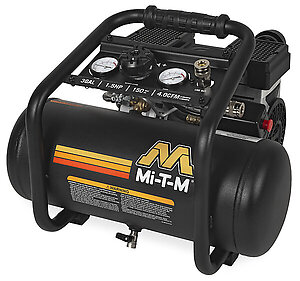

3-Gallon Single Stage Electric AM1-HE15-03QM

AM1-HE15-03QM

Ideal for contractors and do-it-yourselfers to power brad staplers, nail guns and small air tools instead of larger, bulkier air compressors. It can be used indoors where there are nosie restrictions.

Compressor Pump: Oil-free pump · Copper discharge hose · Cartridge air filters

Motor: Induction motor · Thermal overload motor protection · 6-foot power cord

Frame: Powder caoted 3-gallon tank with protective roll cage design

Components: Regulator and two gauges for tank and outlet pressure · Drain and pressure relief valve · Dual industrial interchange quick connect fittings · Start/stop control set at 95 to 125-PSI · Integrated control panel for easy operation

Miscellaneous: Low noise level - less than 70dBA

Specifications

CFM @ 90 PSI 4.0
Horsepower/Motor 1.5 HP, 120V, 15.0A
Compressor Single Stage
Cylinder Aluminum
Tank Size 3-Gallon
Plug Type NEMA 5-15P
Mobility Portable Air Compressors
Stage Single Stage Air Compressors

Weights & Dimensions

Net Weight 51.00 lbs.
Shipping Weight 58.00 lbs.
Length 16.00 in.
Width 15.50 in.
Height 14.50 in.
