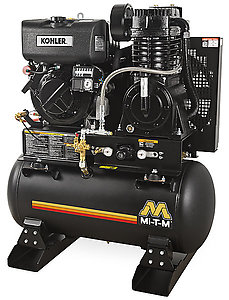

30-Gallon Two Stage Diesel ABS-9KD-30H

ABS-9KD-30H

This diesel-powered machine supplies consistent air flow required for commercial and industrial applications.  It is designed for optimum performance and productivity and features a large-capacity ASME coded tank.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · oil level sight indicator

Engine: Electric start - battery, box and cables not included · Glow plug equipped for easy starting in cold temperatures

Frame: Powder coated ASME coded 30-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · Removable base plate offers flexible installation

Components: Regulator and two gauges for tank and outlet pressure · ASME safety valves · Tank drain valve

*Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ 175 PSI 29.0
Horsepower/Engine 9.1 HP Kohler KD440 OHV
Compressor Two Stage, cast iron
Tank Size 30-gallon
Engine Idle Control Cable throttle
Mobility Stationary Air Compressors
Stage Two Stage Air Compressors

Weights & Dimensions

Net Weight 483.00 lbs.
Shipping Weight 540.00 lbs.
Length 38.00 in.
Width 23.00 in.
Height 46.50 in.

Vibration Isolator Pads IX-0001

Isolators protect the unit from vibration during use
