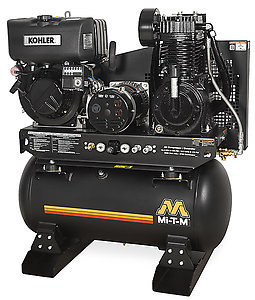

30-Gallon Two Stage Diesel AG2-SKD9-30M

AG2-SKD9-30M

Designed for the agricultural, construction and industrial industries, the 30-gallon air compressor/generator is powered by a diesel engine.  This machine fits on the back of a service truck for big jobs in remote locations.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings · Comes standard with (2) 120V, 20A and (1) 240V, 20A receptacles

Engine: Electric start - battery, box and cables not included · Glow plug equipped for easy starting in cold temperatures

Frame: Powder coated ASME coded 30-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16-1/2 inch fly wheel · Quality pilot valve unloader

*Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ 90 PSI 16.4
CFM @ 175 PSI 15.7
Alternator Wattage/Maximum Output 3000 watts
Alternator Wattage/Continous with Compressor On-Load 2300 watts
Alternator Wattage/Continous with Compressor Off-Load 2750 watts
Receptacles (2) NEMA 5-20R, (1) NEMA L6-20R
Horsepower/Engine 9.1 HP Kohler KD440 OHV
Compressor Two Stage, cast iron
Mobility Stationary Air Compressor/Generators
Stage Two Stage Air Compressor/Generators

Weights & Dimensions

Net Weight 489.00 lbs.
Shipping Weight 554.00 lbs.
Length 41.00 in.
Width 23.00 in.
Height 47.00 in.

Vibration Isolator Pads IX-0001

Isolators protect the unit from vibration during use
