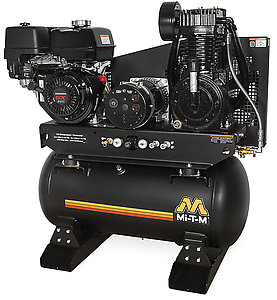

30-Gallon Two Stage Gasoline AG2-SH13-30M

AG2-SH13-30M

Featuring an industrial air compressor and generator combination, this machine is durable even in the toughest environments.  Whether it's oil fields or farm fields, this versatile machine will deliver enough power to get the job done.

Compressor Pump: Quality cast iron two stage compressor · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Large canister intake filter · Durable stainless-steel braided discharge hose for longer life

Engine: Honda GX390 OHV engine

Generator: Brushless alternator · Industrial 4000-watt generator with (2) 120V, 20A and (1) 240V, 20A receptacles · Total harmonic distortion (THD) less than 6% · 100% copper windings

Frame: Powder coated ASME coded 30-gallon receiver tank · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts

*Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ 90 PSI 16.4
CFM @ 175 PSI 15.7
Alternator Wattage/Maximum Output 4000 watts
Alternator Wattage/Continous with Compressor On-Load 2300 watts
Alternator Wattage/Continous with Compressor Off-Load 3500 watts
Receptacles (2) NEMA 5-20R, (1) NEMA L6-20R
Displacement/Engine 389cc Honda GX390 OHV
Compressor Two Stage, cast iron
Mobility Stationary Air Compressor/Generators
Stage Two Stage Air Compressor/Generators

Weights & Dimensions

Net Weight 450.00 lbs.
Shipping Weight 550.00 lbs.
Length 40.00 in.
Width 24.50 in.
Height 45.00 in.

Lifting Hook AX-0063

For easier portability

Electric Start (battery box and cables included, battery not included) AX-0064

For easy starting

Electric Start (battery, box and cables not included) AX-0019

For easy starting

Vibration Isolator Pads IX-0001

Isolators protect the unit from vibration during use

Idle Down AX-0068

When activated it automatically throttles down engine to conserve fuel, includes electric start - battery not included

Battery Tray, Box and 2-Foot of Cables Included AX-0070

Attaches to engine side of unit

Remote Start/Choke IX-0055

Remote start/choke; 6-foot wire extension for key switch; you will also need to order electric start option, AX-0015
