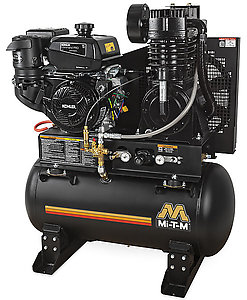

This 30-gallon air compressor is designed to provide high capacity air flow required for most commercial, industrial and automotive industries. Mount one in a service truck and take it to the most demanding jobsite.
Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure · Splash lubricated cast iron crankcase to exten the hours of performance · Cast iron head and cylinder for extended durability · Stainless-steel braided discharge hose · Oil level sight indicator
Engine: 429cc Kohler CH440 0HV engine (Electric start standard - battery and cables not included) · Cable throttle control to conserve fuel
Frame: 3/16-inch base plate to reduce vibration · 16-gauge powder coated totally enclosed belt guard · Removable base plate offers flexible installation · Powder coated ASME coded 30-gallon receiver tank
Components: Regulator and two gauges for tank and outlet pressure · ASME safety valves · Belt tightening system pulls engine straight to ensure constant belt alignment · 16.5-inch fly wheel for extra cooling and longer life · Tank drain valve
MSRP: $5,172.00
*Equipped with 150-PSI maximum rated regulator.
| CFM @ 175 PSI | 29.0 |
| Displacement/Engine | 429cc Kohler CH440 OHV |
| Compressor | Two Stage, cast iron |
| Tank Size | 30-gallon |
| Engine Idle Control | Cable throttle |
| Mobility | Stationary Air Compressors |
| Stage | Two Stage Air Compressors |
| Net Weight | 416.00 lbs. |
| Shipping Weight | 480.00 lbs. |
| Length | 38.00 in. |
| Width | 23.00 in. |
| Height | 46.00 in. |
Vibration Isolator Pads IX-0001
Isolators protect the unit from vibration during use
Battery, Box and Tray AX-0077
Attaches to engine side of unit
