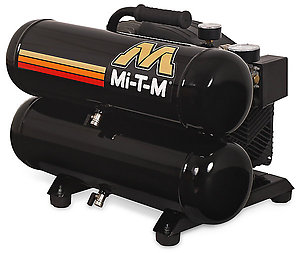

4-Gallon Single Stage Electric AM1-HE02-04M

AM1-HE02-04M

The perfect size for jobs around the house or small workshop. Completely portable, the Work Pro® Series delivers great air power for drills, grinders and nail guns. This single stage compressor is built to perform and built to last.

Compressor Pump: Quality single stage compressor · Cast iron cylinder · Oil lubricated aluminum crankcase · Copper line discharge hose · Cartridge air filter

Motor: 120V single-phase 60-Hz. motor with 15-amp plug · Thermal overload motor protection

Frame: 4-gallon powder coated tank assembly · Protective pump/motor housing · Powder coated steel frame design · Rubber handle for cushioned grip · Rubber isolators

Components: Regulator and two gauges for tank and outlet pressure · Drain valves and pressure relief valve · Start/stop control set at 95 to 125-PSI · Industrial interchange quick connect fittings

Specifications

CFM @ 90 PSI 4.2
Horsepower/Motor 2.0 HP, 120V, 15.0A
Compressor Single Stage
Cylinder Cast Iron
Tank Size 4-gallon
Plug Type NEMA 5-15P
Mobility Portable Air Compressors
Stage Single Stage Air Compressors

Weights & Dimensions

Net Weight 60.00 lbs.
Shipping Weight 68.00 lbs.
Length 21.50 in.
Width 16.00 in.
Height 15.75 in.
