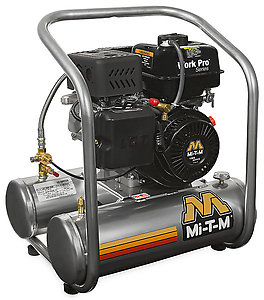

5-Gallon Single Stage Gasoline AM1-HM04-05WP

AM1-HM04-05WP

The perfect size for jobs around the house or small workshop. Completely portable, the Work Pro® Series delivers great air power for drills, grinders and nail guns. This single stage compressor is built to perform and built to last.

Compressor Pump:  Oil lubricated aluminum crankcase · Stainless-steel braided discharge hose · Cartridge air filter

Engine: Mi-T-M OHV

Frame:  Powder coated steel frame and handle · 5-gallon powder coated tank assembly · Protective pump/engine housing

Components:  Regulator and two gauges for tank and outlet pressure · Drain valves and pressure relief valves · Start/stop control set at 95 to 125-PSI

Specifications

CFM @ PSI 4.8 @ 90
Displacement/Engine 136cc Mi-T-M OHV
Compressor Single stage, aluminum
Tank Size 5-gallon
Engine Idle Control Cable throttle
Mobility Portable Air Compressors
Stage Single Stage Air Compressors

Weights & Dimensions

Net Weight 77.00 lbs.
Shipping Weight 85.00 lbs.
Length 21.00 in.
Width 17.25 in.
Height 21.75 in.
