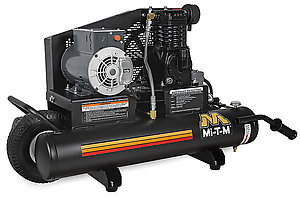

8-Gallon Single Stage Electric AM1-PE02-08M

AM1-PE02-08M

The popular 8-gallon electric air compressor features advanced technology and performance so you can power up everything from drills to grinders and paint guns.  Its portability makes it a great choice on many jobsites.

Compressor Pump: Quality cast iron single stage compressor · Stainless-steel braided discharge hose · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Large canister intake filter · Oil level sight indicator

Motor: Industrial UL-listed electric motor · Auto start/stop (continuous run optional) · Thermal overload protection

Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts · Convenient lifting handles · 10-inch flat-free tire

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · Industrial grade pressure switch · 10-inch flywheel for extra cooling and longer life · Belt tightening system pulls engine straight to ensure constant belt alignment

Specifications

CFM @ 90 PSI 9.2
Horsepower/Motor 2.0 HP, 120V, 18.8A
Compressor Single stage, cast iron
Tank Size 8-gallon
Plug Type NEMA 5-20P
Mobility Portable Air Compressors
Stage Single Stage Air Compressors

Weights & Dimensions

Net Weight 183.00 lbs.
Shipping Weight 203.00 lbs.
Length 44.50 in.
Width 18.50 in.
Height 25.00 in.

Auto Drain/Regulator/Plastic Bowl AX-0002

Drains moisture from air system

Manual Drain/Regulator/Metal Bowl AX-0003

Drains moisture from air system

Dual Control AX-0005

Compressor can be operated in start/stop mode or continuous run where pilot valve exhausts air to atmosphere

Stationary Option AX-0078

Converts the portable model to a stationary model, removes the wheel
