8-Gallon Single Stage Electric AM1-PE15-08WP

AM1-PE15-08WP

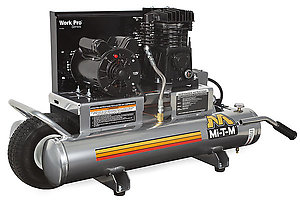

The high performing Work Pro® Series is offered in an 8-gallon electric or gas-driven air compressor.  Available as a single or two-stage compressor, it can power everything from impact wrenches and nail guns to paint sprayers and staplers.

Compressor Pump:  Splash oil lubricated aluminum crankcase · Stainless-steel braided discharge hose · Oil level sight indicator

Motor:  Thermal overload motor protection

Frame:  Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · 10-inch flat-free tires

Components:  Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · Fly wheel · Industrial grade pressure switch

Specifications

CFM @ PSI 7.3 @ 90
Horsepower/Motor 1.5 HP, 115V, 13.2A
Compressor Single stage, aluminum
Tank Size 8-gallon
Plug Type NEMA 5-15P
Mobility Portable Air Compressors
Stage Single Stage Air Compressors

Weights & Dimensions

Net Weight 140.00 lbs.
Shipping Weight 160.00 lbs.
Length 44.50 in.
Width 18.50 in.
Height 25.00 in.

Auto Drain/Regulator/Plastic Bowl AX-0002

Drains moisture from air system

Manual Drain/Regulator/Metal Bowl AX-0003

Drains moisture from air system
