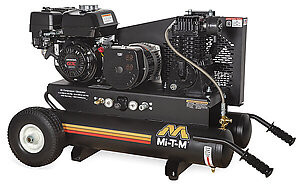

8-Gallon Single Stage Gasoline AG1-PH65-08M1

AG1-PH65-08M1

Increase your productivity by merging two vital pieces of equipment into one versatile machine.  Ideal for every industrial application requiring both air and electrical power, you'll save space and save money with one machine.

Compressor Pump: Quality cast iron single stage compressor · Durable stainless-steel braided discharge hose for longer life · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Large canister intake filter

Generator: Brushless alternator · Industrial 1800-watt generator with two NEMA 5-20R receptacles · Total harmonic distortion (THD) less than 5% · 100% copper windings

Engine: Industrial Honda GX200 OHV engine

Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts · Convenient lifting handles · 10-inch flat-free tires

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12-inch flywheel for extra cooling and longer life · Quality pilot valve unloader  · Belt tightening system pulls engine straight to ensure constant belt alignment

Specifications

CFM @ 90 PSI 12.4
CFM @ 125 PSI 10.9
Alternator Wattage/Maximum Output 1800 watts
Alternator Wattage/Continous with Compressor On-Load 600 watts
Alternator Wattage/Continous with Compressor Off-Load 1600 watts
Receptacles (2) NEMA 5-20R
Displacement/Engine 196cc Honda GX200 OHV
Compressor Single stage, cast iron
Mobility Portable Air Compressor/Generators
Stage Single Stage Air Compressor/Generators

Weights & Dimensions

Net Weight 207.00 lbs.
Shipping Weight 257.00 lbs.
Length 44.50 in.
Width 26.00 in.
Height 27.50 in.
