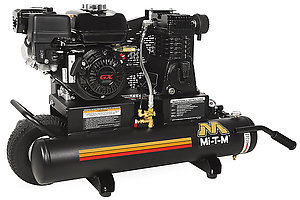

8-Gallon Single Stage Gasoline AM1-PH65-08M

AM1-PH65-08M

Contractors love the portability of this wheelbarrow style 8-gallon air compressor.  It is designed for maximum efficiency to provide essential air power for multiple tools around most construction sites.

Compressor Pump: Quality cast iron single stage compressor · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Engine: Industrial Honda GX200 OHV engine · Pneumatic idle control to conserve fuel

Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts · Convenient lifting handles · 10-inch flat-free tire

Components: Regulator and two gauges for tank and outlet pressure ·Manual drain valves for proper maintenance · Belt tightening system pulls engine straight to ensure constant belt alignment · 12-inch fly wheel for extra cooling and longer life · Quality pilot valve unloader

Specifications

CFM @ 90 PSI 13.9
Displacement/Engine 196cc Honda GX200 OHV
Compressor Single stage, cast iron
Tank Size 8-gallon
Engine Idle Control Pneumatic
Mobility Portable Air Compressors
Stage Single Stage Air Compressors

Weights & Dimensions

Net Weight 175.00 lbs.
Shipping Weight 200.00 lbs.
Length 44.50 in.
Width 18.50 in.
Height 27.00 in.

Manual Drain/Regulator/Metal Bowl AX-0003

Drains moisture from air system

Stationary Option AX-0078

Converts the portable model to a stationary model, removes the wheel
