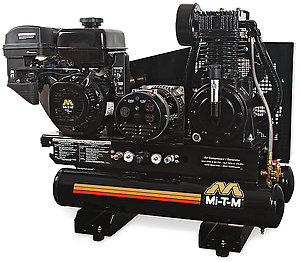

8-Gallon Two Stage Gasoline AG2-PM14-08M1^

AG2-PM14-08M1

Increase your productivity by merging two vital pieces of equipment into one versatile machine.  Ideal for every industrial application requiring both air and electrical power, you'll save space and save money with one machine.

Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 5% · 100% copper windings · Comes standard with (2) 120V, 20A and (1) 240V, 20A receptacles

Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · 13-inch flat-free tires

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16.5-inch fly wheel · Quality pilot valve unloader

*Equipped with 150-PSI maximum rated regulator.
^Option AX-0074 cannot be mounted at the factory but can be shipped with the unit for custom mounting. Consult factory for more information.

Specifications

CFM @ 90 PSI 16.4
CFM @ 175 PSI 15.7
Alternator Wattage/Maximum Output 4000 watts
Alternator Wattage/Continous with Compressor On-Load 2300 watts
Alternator Wattage/Continous with Compressor Off-Load 3500 watts
Receptacles (2) NEMA 5-20R, (1) NEMA L6-20R
Displacement/Engine 420cc Mi-T-M OHV
Compressor Two Stage, cast iron
Mobility Portable Air Compressor/Generators
Stage Two Stage Air Compressor/Generators

Weights & Dimensions

Net Weight 375.00 lbs.
Shipping Weight 450.00 lbs.
Length 52.00 in.
Width 28.00 in.
Height 34.00 in.

Lifting Hook AX-0028

For easier portability

Electric Start (battery, box and cables not included) AX-0073

For easy starting

Electric Start (battery box and cables included, battery not included) AX-0074

For easy starting
