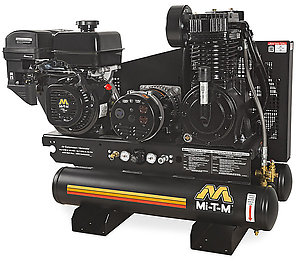

AG2-SM14-08M1

Increase your productivity by merging two vital pieces of equipment into one versatile machine.  Ideal for every industrial application requiring both air and electrical power, you'll save space and save money with one machine.

Compressor Pump: Quality cast iron two stage compressor · Durable stainless-steel braided discharge hose for longer life · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Large canister intake filter

Generator: Brushless alternator · Industrial 4000-watt generator with (2) 120V, 20A and (1) 240V, 20A receptacles· Total harmonic distortion (THD) less than 5% · 100% copper windings

Engine: Industrial Mi-T-M OHV Engine

Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch flywheel for extra cooling and longer life · Quality pilot valve unloader · Belt tightening system pulls engine straight to ensure constant belt alignment

MSRP: $4,095.00

*Equipped with 150-PSI maximum rated regulator.
^Option AX-0074 cannot be mounted at the factory but can be shipped with the unit for custom mounting. Consult factory for more information.

Specifications

CFM @ 90 PSI 16.4
CFM @ 175 PSI 15.7
Alternator Wattage/Maximum Output 4000 watts
Alternator Wattage/Continous with Compressor On-Load 2300 watts
Alternator Wattage/Continous with Compressor Off-Load 3500 watts
Receptacles (2) NEMA 5-20R, (1) NEMA L6-20R
Displacement/Engine 420cc Mi-T-M OHV
Compressor Two Stage, cast iron
Mobility Stationary Air Compressor/Generators
Stage Two Stage Air Compressor/Generators

Weights & Dimensions

Net Weight 365.00 lbs.
Shipping Weight 465.00 lbs.
Length 44.00 in.
Width 22.00 in.
Height 34.00 in.

Lifting Hook AX-0028

For easier portability

Electric Start (battery, box and cables not included) AX-0073

For easy starting

Electric Start (battery box and cables included, battery not included) AX-0074

For easy starting
