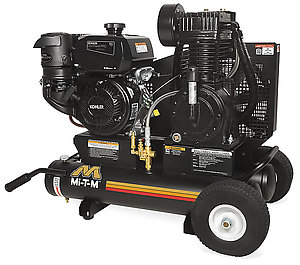

8-Gallon Two Stage Gasoline AM2-PK95-08M

AM2-PK95-08M

The two stage wheelbarrow style 8-gallon air compressor is ideal for both contractors and remodelers where a higher CFM and air pressure is a must.  Use it to power a multitude of air tools such as air hammers and impact wrenches.

Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure · Stainless-steel braided discharge hose · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head and cylinder for extended durability · Large canister intake filter · Oil level sight indicator

Engine: Industrial Kohler CH395 OHV engine · Cable throttle control to conserve fuel · Engine oil drain

Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts · Convenient lifting handles · 10-inch flat-free tires

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch flywheel for extra cooling and longer life · Quality pilot valve unloader · Belt tightening system pulls engine straight to ensure constant belt alignment

*Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ 175 PSI 17.2
Displacement/Engine 277cc Kohler CH395 OHV
Compressor Two Stage, cast iron
Tank Size 8-gallon
Engine Idle Control Cable throttle
Mobility Portable Air Compressors
Stage Two Stage Air Compressors

Weights & Dimensions

Net Weight 260.00 lbs.
Shipping Weight 330.00 lbs.
Length 44.00 in.
Width 26.00 in.
Height 31.00 in.

Manual Drain/Regulator/Metal Bowl AX-0003

Drains moisture from air system
