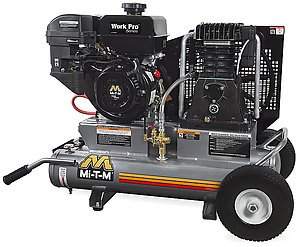

8-Gallon Two Stage Gasoline AM2-PM09-08WP

AM2-PM09-08WP

The high performing Work Pro® Series is offered in an 8-gallon electric or gas-driven air compressor.  Available as a single or two-stage compressor, it can power everything from impact wrenches and nail guns to paint sprayers and staplers.

Compressor Pump:  Splash oil lubricated aluminum crankcase · Stainless-steel braided discharge hose · Oil level sight indicator

Engine:  Mi-T-M OHV

Frame:  Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard · 13-inch flat-free tires

Components:  Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · Fly wheel · Quality pilot valve unloader

*Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ PSI 17.2 @ 175*
Displacement/Engine 300cc Mi-T-M OHV
Compressor Two stage, aluminum
Tank Size 8-gallon
Engine Idle Control Cable throttle
Mobility Portable Air Compressors
Stage Two Stage Air Compressors

Weights & Dimensions

Net Weight 175.00 lbs.
Shipping Weight 200.00 lbs.
Length 44.00 in.
Width 26.00 in.
Height 31.00 in.

Manual Drain/Regulator/Metal Bowl AX-0003

Drains moisture from air system
