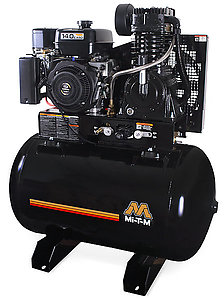

80-Gallon Two Stage Gasoline Horizontal ABS-14M-80H

ABS-14M-80H

This 80-gallon air compressor is designed to provide high capacity air flow required for most commercial, industrial and automotive industries.  Mount one in a service truck and take it to the most demanding jobsite.

Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head and cylinder for extended durability · Stainless-steel braided discharge hose · Oil level sight indicator

Engine: Electric start standard - battery and cables not included

Frame: 3/16-inch base plate to reduce vibration · 16-gauge powder coated totally enclosed belt guard · Removable base plate offers flexible installation · Powder coated ASME coded 80-gallon receiver tank

Components: Regulator and two gauges for tank and outlet pressure · ASME safety valves · Belt tightening system pulls engine straight to ensure constant belt alignment · 16.5-inch fly wheel for extra cooling and longer life · Tank drain valve

*Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ 175 PSI 29.0
Displacement/Engine 420cc Mi-T-M OHV
Compressor Two Stage, cast iron
Tank Size 80-gallon
Engine Idle Control Cable throttle
Mobility Stationary Air Compressors
Stage Two Stage Air Compressors

Weights & Dimensions

Net Weight 496.00 lbs.
Shipping Weight 560.00 lbs.
Length 52.00 in.
Width 26.50 in.
Height 53.00 in.

Vibration Isolator Pads IX-0001

Isolators protect the unit from vibration during use

Battery, Box and Tray AX-0077

Attaches to engine side of unit
