The mechanical oil/water separator systems are designed to remove free oils from wash water before discharging to your sanitary sewer. The oil/water/solids separators will reduce the amount of suspended solids while removing hydrocarbons to meet local sanitary sewer discharge requirements.

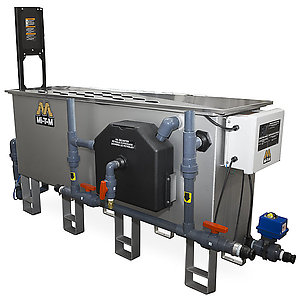

Mi-T-M's WOS Series consists of above-ground oil/water/solids separators designed to discharge equipment and vehicle wash-water into sanitary sewers.
The WOS Series offers the following features:
·Ozone
·Stainless-steel tank
·Capability of handling oil and solids
·Takes up an extremely small footprint
·Easy to maintain
·CSA approved control panel which meets the requirements of the US and Canadian standards for an Industrial Control Panel
·1.0 HP surface-mount sump pump
·CSA listed NEMA-4 rated corrosion-proof control panel for safe and reliable operation
·Sloped bottom design for easier solids removal
The WOS Series is perfect for the following applications:
·Rental yards
·Heavy equipment dealers
·Trucking facilities
·Truck rental fleets
·Diesel repair facilities
·Forklift washing operations
·Aircraft maintenance and restoration
·Shipyards
·Municipalities/State DOTs
·Oil fields
·Engine rebuilders and manufacturers
·Military bases
Models Available:
WOS-15-0M10 120V, 1Ø, 15.0A
WOS-15-0M30 208-230V, 3Ø, 5.0A
The Importance of a Proper Pit System:
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.
Consult Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.
Flow Rate | 0-15 GPM |
Coalescing Media | 672 sq. ft. |
Tank Holding Capacity | 170-gallon |
In-Line Strainer Pump | 1.0 HP, 120V or 230V |
Net Weight | 0.00 lbs. |
Shipping Weight | 675.00 lbs. |
Length | 91.00 in. |
Width | 31.00 in. |
Height | 40.00 in. |
Continuous Recirculation WX-0001
Recirculates water back to the pit to prevent water from becoming stagnant.
230V, 1Ø WX-0057
Upgrades 120V model to operate at 230V
460V, 3Ø WX-0058
Upgrades 208-230V model to operate at 460V
