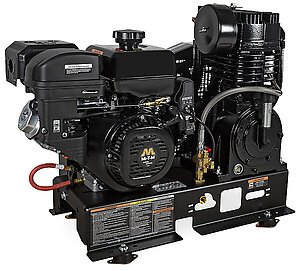

Base-Mount Two Stage Gasoline ABS-14M-B

ABS-14M-B

This base-mount air compressor is designed to provide high capacity air flow required for most commercial, industrial and automotive industries. Mount one in a service truck and take it to the most demanding jobsite.

Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head and cylinder for extended durability · Stainless-steel braided discharge hose · Oil level sight indicator

Engine: Electric start standard - battery and cables not included

Frame: 3/16-inch base plate to reduce vibration · 16-gauge powder coated totally enclosed belt guard · Removable base plate offers flexible installation

Components: Regulator and two gauges for tank and outlet pressure · ASME safety valves · Belt tightening system pulls engine straight to ensure constant belt alignment · 16.5-inch fly wheel for extra cooling and longer life · Tank drain valve · Service truck mount kit

*Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ 175 PSI 29.0
Displacement/Engine 420cc Mi-T-M OHV
Compressor Two Stage, cast iron
Tank Size Base-Mount
Engine Idle Control Cable throttle
Mobility Stationary Air Compressors
Stage Two Stage Air Compressors

Weights & Dimensions

Net Weight 215.00 lbs.
Shipping Weight 279.00 lbs.
Length 36.50 in.
Width 19.00 in.
Height 28.00 in.
