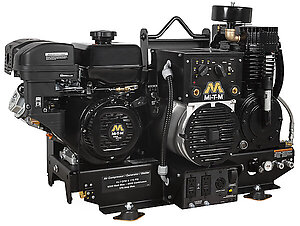

Maximum performance in a single machine, the air compressor, generator, welder combination can tackle any job in the shop or in the field. It is the ideal heavy equipment for mechanics and industrial equipment repairs in the construction, mining, logging and oil and gas industries.
Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings
Welder: Amperage selection switch, 170A maximum
Frame: 16-gauge powder coated belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16½-inch fly wheel
MSRP: $9,841.00
*Equipped with 150-PSI maximum rated regulator.
| Displacement/Engine | 408cc Vanguard OHV with electric start - battery and battery cables not included |
| Rated Speed | 3600 RPM |
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
| Compressor | Two Stage, cast iron |
| Tank Size | N/A - base mount model |
| Max. AC Output | 5000 watts |
| Rated AC Output | 4500 watts |
| Alternator Wattage Continous On-Load @ 90 PSI | 3000 watts |
| Alternator Wattage Continous On-Load @ 175 PSI | 2500 watts |
| Frequency/Voltage | 60Hz/120V/240V |
| Max. Amps (120V/240V) | 41.5/20.8 off-load |
| Cont. Amps (120V/240V) | 37.5/18.8 off-load |
| Receptacles | (2) 120V, 20A GFCI duplex; (1) 120V/240V 20A twist lock |
| Duty Cycle (10 Minute Run Time) | 150A @ 100% |
| DC Voltage | 50-170A working range |
| Fuel Tank | 1.53 gallon |
| Net Weight | 404.00 lbs. |
| Shipping Weight | 469.00 lbs. |
| Length | 49.00 in. |
| Width | 22.00 in. |
| Height | 28.50 in. |
Battery Tray, Box and 2-Foot of Cables Included AX-0070
Attaches to engine side of unit
