CAW-2004-0ME3

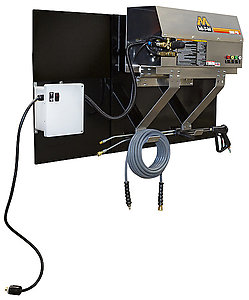

Designed to attach directly to a wall, this series offers a secure system for use in a wide range of locations.  Featuring non-corrosive aluminum construction, it is perfect for high volume cleaning and sanitizing jobs and is especially versatile in factories, wash bays and food processing plants.

Pump:  Stainless-steel and brass trapping unloader · Forged brass manifold · Thermal relief valve · External quick connect low pressure detergent injector · Pump accepts incoming water up to 165°F

Motor:  Totally enclosed fan-cooled electric motor with manual thermal overload protection · 4-foot power cord

Frame:  Aluminum base plate and frame · Aluminum wall-mounting brackets · Aluminum hose and gun/wand holder

Components:  Time delay shutdown · Remote mounted electrical box included, must be mounted within 3 ½-feet of unit

Unit Includes:  Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch non-marking high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off

MSRP: $5,467.00

Dimensions do not include the mounting brackets

Specifications

PSI 2000
GPM 3.9
Horsepower/Motor 6.0 HP, 230V, 3Ø, 16.4A
Pump General
Unloader Factory preset
Plug Type NEMA L15-20P
Lance Adjustable, dual, 36-inch
Mobility Stationary Pressure Washers
Water Temperature Cold Water Pressure Washers
Drive Type Direct Drive Pressure Washers

Weights & Dimensions

Net Weight 163.00 lbs.
Shipping Weight 223.00 lbs.
Length 31.00 in.
Width 17.25 in.
Height 18.00 in.

Remote Box CX-0078

Adds control box which may be mounted away from unit to control on/off, not available on models with auto start/stop

Additional Remote Boxes (up to 3) CX-0109

Additional remote boxes (up to 3)

460V on 6.0 HP, 3 Phase Models CX-0110

For when you have 460V of power available

Auto Start/Stop CX-0112

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
