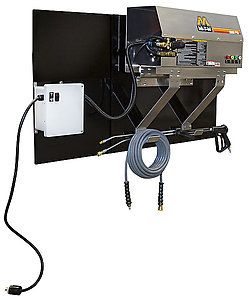

Designed to attach directly to a wall, this series offers a secure system for use in a wide range of locations. Featuring non-corrosive aluminum construction, it is perfect for high volume cleaning and sanitizing jobs and is especially versatile in factories, wash bays and food processing plants.
Pump: Stainless-steel and brass trapping unloader · Forged brass manifold · Thermal relief valve · External quick connect low pressure detergent injector · Pump accepts incoming water up to 165°F
Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection · 4-foot power cord
Frame: Aluminum base plate and frame · Aluminum wall-mounting brackets · Aluminum hose and gun/wand holder
Components: Time delay shutdown · Remote mounted electrical box included, must be mounted within 3 ½-feet of unit
Unit Includes: Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch non-marking high pressure hose with quick connects · Professional-grade insulated trigger gun with safety lock-off
MSRP: $5,844.00
Dimensions do not include the mounting brackets
| PSI | 3000 |
| GPM | 3.9 |
| Horsepower/Motor | 8.0 HP, 230V, 3Ø, 22.8A |
| Pump | General |
| Unloader | Factory preset |
| Plug Type | NEMA L15-30P |
| Lance | Adjustable, dual, 36-inch |
| Water Temperature | Cold Water Pressure Washers |
| Mobility | Stationary Pressure Washers |
| Drive Type | Direct Drive Pressure Washers |
| Net Weight | 193.00 lbs. |
| Shipping Weight | 253.00 lbs. |
| Length | 31.00 in. |
| Width | 17.25 in. |
| Height | 18.00 in. |
Remote Box CX-0078
Adds control box which may be mounted away from unit to control on/off, not available on models with auto start/stop
Additional Remote Boxes (up to 3) CX-0109
Additional remote boxes (up to 3)
460V on 8.0 HP, 3 Phase Models CX-0111
For when you have 460V of power available
Auto Start/Stop CX-0112
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
