CHV-0525-0ME1

Receive more power with less pressure. This cold water, high-volume washer is the perfect answer for applications that require cleaning of heavy solids, especially from large industrial equipment. Ideal for wash bay set-ups.

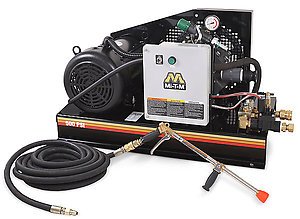

Cold water stationary electric belt-driven pressure washer.....part of the WC Series.

Pump: Belt drive diaphragm pump with pulsation dampener

Motor: Totally enclosed fan-cooled electric motor with thermal overload protection · 10-foot power cord

Components: Pressure regulator with manual dump lever and gauge · Makeup water shut-off solenoid and flow switch on outlet · Time delay shutdown

Unit Includes: 50-foot x 3/4-inch non-marking high pressure hose with quick connects · Stainless-steel long range nozzle · High-volume gun with adjustable pattern from straight stream to cone mist

Specifications

GPM @ PSI 25 @ 500
Horsepower/Motor 10.0 HP, 230V, 1Ø, 41.5A

Weights & Dimensions

Net Weight 0.00 lbs.
Shipping Weight 432.00 lbs.
Length 38.00 in.
Width 23.50 in.
Height 24.00 in.

300-Gallon Tank CX-0072

300-gallon tank with stand, suction hose and float

460V, 3-Phase Models CX-0073

For when you have 460V of power available

18-Inch Stand CX-0074

Raises unit off of ground

Remote Start Control Box CX-0075

For when unit is not near spraying location
