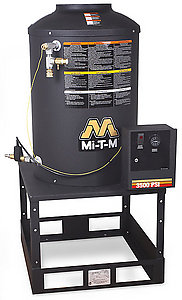

Heater Module Diesel/Oil-Heated HOM Series HOM-3506-0E10

HOM-3506-0E10

Convert your cold water pressure washer into a hot water unit whenever the need arises with a heater module.  Each features a powder coated steel frame assembly and several fuel burner types are available.

Frame: Powder coated frame assembly · Fork truck accessible base

Components: Incoming power 120V single-phase · 24V control system · 1/2-inch schedule 80 vertical coil assembly · 12-foot x 3/8-inch jumper hose with quick connects to hook up to existing pressure washer

Additional Feature: No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel)

Specifications

PSI 3500
GPM 6.0
Electrical Voltage/Phase/Amp 115V, 1Ø, 3.2A
Burner Fuel Consumption 2.76 gph
Diesel BTU Per Hour 386,400
Mobility Stationary Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 330.00 lbs.
Shipping Weight 450.00 lbs.
Length 24.25 in.
Width 26.25 in.
Height 49.75 in.

Stainless-Steel Coil Wrap HX-0116

Converts powder coated painted coil wrap to stainless-steel material
