DH-3504-SE0E2G

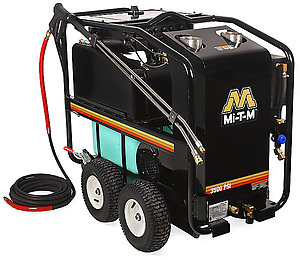

The DHS Series of belt driven hot water pressure washers are ideal for cleaning applications requiring 20 or more hours of use a week.  Recommended for heavy, consistent cleaning applications, this model is great for industrial and commercial jobs where you need to tackle nasty grime, oil and dirt.

Pump:  Belt drive triplex piston General pump with ceramic plungers · Stainless-steel and brass unloader · Forged brass manifold · Thermal relief valve · High pressure detergent injector

Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord

Frame: Reinforced powder coated steel tube frame with center balanced lifting hook · 13-inch flat-free tires

Components: Energy-efficient top-fired heat exchanger designed for convenient troubleshooting and easy maintenance · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects, swivel and bend restrictors · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off

MSRP: $10,540.00

Specifications

PSI 3500
GPM 3.3
Horsepower/Motor 10.0 HP, 230V, 1Ø, 39.0A
Pump General
Plug Type NEMA 6-50P
Burner Fuel Tank Capacity 10.0 gallon
Burner Fuel Consumption 2.10 gph
BTU Per Hour 294,000
Drive Type Belt Drive Pressure Washers
Mobility Portable Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 631.00 lbs.
Shipping Weight 761.00 lbs.
Length 49.50 in.
Width 28.00 in.
Height 40.50 in.

Auto Start/Stop HX-0070

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

Auto Start/Stop - Steam HX-0073

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F

Auto Start/Stop - CAD Cell HX-0074

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Monitors burner for proper ignition

Auto Start/Stop - Steam - CAD Cell HX-0077

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F; Monitors burner for proper ignition

Skid Feet HX-0088

Stationary applications

Hour Meter HX-0161

Displays the number of hours unit has been in operation
