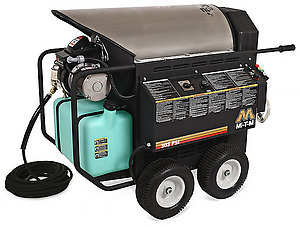

HHB-303-0E1A

The belt driven HHB Series is designed for heavy-duty industrial cleaning jobs requiring hot water.  It can easily handle the demanding jobs on construction jobsites, agricultural locations or commercial cleaning applications.

Pump: Belt drive triplex piston AR plunger pump · Adjustable high pressure detergent injector

Motor: Open drip-proof electric motor with thermal overload protection · 35-foot power cord

Frame: Wrinkle-finish powder coated steel frame assembly · 13-inch flat-free tires with rear tire brake

Components: Stainless-steel coil wrap heat exchanger with horizontal schedule 80 pipe coil · No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel) · Racor fuel/water separator · Adjustable thermostat · Polyethylene float tank with inlet filter screen · 10-gallon polyethylene fuel tank

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200ºF

Unit Includes:  50-foot x 3/8-inch steam hose with quick connects · Single lance with dual insulated grips; steam nozzle · Insulated trigger gun with safety lock-off

*Steam unit

Specifications

PSI 300
GPM 2.5
Horsepower/Motor 1.5 HP, 115V, 1Ø, 12.5A
Plug Type NEMA 5-15P
Burner Fuel Tank Capacity 10.0 gallon
Burner Fuel Consumption 2.76 gph
BTU Per Hour 386,400
Drive Type Belt Drive Pressure Washers
Mobility Portable Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 460.00 lbs.
Shipping Weight 480.00 lbs.
Length 57.00 in.
Width 30.00 in.
Height 41.50 in.
