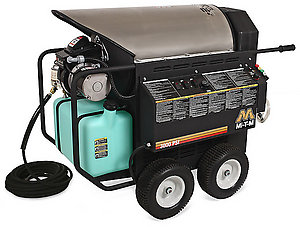

Portable Electric Belt Drive HHS Series HHS-3004-2E2G

HHS-3004-2E2G

The best way to tackle the toughest cleaning job is with the HHS Series of pressure washers.  Completely portable, easy to use and one of the most reliable in the industry.

Pump: Belt drive triplex piston General pump · Adjustable high pressure detergent injector

Motor: Open drip-proof electric motor with thermal overload protection · 35-foot power cord

Frame: Wrinkle-finish powder coated steel frame assembly · 13-inch flat-free tires with rear tire brake

Components: Stainless-steel coil wrap heat exchanger with horizontal schedule 80 pipe coil · No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel) · Auto start/stop · Time delay shutdown · Hour meter · 10-gallon polyethylene fuel tank · Racor fuel filter/water separator · Wand holder · Adjustable thermostat · Polyethylene float tank with inlet filter screen

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25°, 40° and low pressure nozzle · 50-foot x 3/8-inch high pressure hose with quick connects · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off

Specifications

PSI 3000
GPM 3.9
Horsepower/Motor 8.0 HP, 230V, 1Ø, 39.5A
Pump General
Plug Type NEMA 6-50P
Burner Fuel Tank Capacity 10.0 gallon
Fuel Consumption 2.14 gph
BTU Per Hour 341,800
Drive Type Belt Drive Pressure Washers
Mobility Portable Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 580.00 lbs.
Shipping Weight 700.00 lbs.
Length 57.00 in.
Width 30.00 in.
Height 41.50 in.

Stainless-Steel Bottom Wrap HX-0162

Converts powder coated painted bottom wrap to stainless-steel

Skid Feet HX-0171

Stationary applications

250°F Steam HX-0172

Increases outlet temperature to 250°F

Skid Frame/Roll Cage Frame HX-0196

Stationary applications

Wireless Remote HX-0248

Ez-quip install

K7 Unloader, Flow Activated (auto start/stop N/A) HX-0254

Converts pressure trapping unloader system to flow actuated K7 unloader
