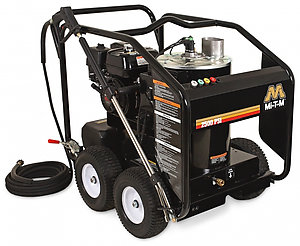

Portable Gasoline Direct Drive DHS Series DH-2503-SP0H6M

DH-2503-SP0H6M

The Electro Magnetic Firing (EMF) system of this pressure washer, along with its unique burner design, makes this popular hot water pressure washer one of the most in-demand in the industry.

Pump: Direct drive triplex piston Mi-T-M pump with ceramic plungers · Preset stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve · Low pressure detergent injector (Available as an option on DH-2503-SP0H6M)

Engine: Performance-proven engine with low-oil protection

Frame: Reinforced powder coated steel tube frame with center balanced lifting hook · 13-inch flat-free tires

Components: Top-fired powder coated heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous:  Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects, swivel and bend restrictors · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off

Specifications

PSI 2500
GPM 2.6
Displacement/Engine 196cc Honda GX200 OHV
Pump Mi-T-M
Engine Fuel Tank Capacity 0.95 gallon
Burner Fuel Tank Capacity 4.0 gallon
Burner Fuel Consumption 1.53 gph
BTU Per Hour 210,000
Drive Type Direct Drive Pressure Washers
Mobility Portable Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 295.00 lbs.
Shipping Weight 411.00 lbs.
Length 43.00 in.
Width 29.50 in.
Height 36.50 in.

Adjustable Thermostat HX-0233

Operator is able to adjust outlet water temperature between 86°-248°F

Low Pressure Detergent Injector HX-0234

Allows the user to apply the recommended detergents

Hour Meter HX-0236

Displays the number of hours unit has been in operation
