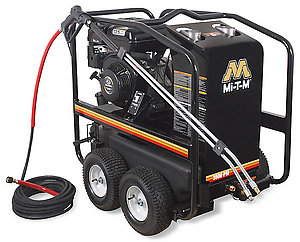

DH-3504-SP3K6A

The Electro Magnetic Firing (EMF) system of this pressure washer, along with its unique burner design, makes this popular hot water pressure washer one of the most in-demand in the industry.

Pump: Direct drive triplex piston AR pump with ceramic plungers · Preset stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve · Low pressure detergent injector

Engine: Performance-proven engine with low-oil protection

Frame: Reinforced powder coated steel tube frame with center balanced lifting hook · 13-inch flat-free tires

Components: Top-fired powder coated heat exchanger · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous:  Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects, swivel and bend restrictors · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off

Specifications

PSI 3500
GPM 3.3
Displacement/Engine 429cc Kohler CH440 OHV
Pump AR, external bypass
Engine Fuel Tank Capacity 1.70 gallon
Burner Fuel Tank Capacity 5.5 gallon
Burner Fuel Consumption 2.14 gph
BTU Per Hour 294,000
Drive Type Direct Drive Pressure Washers
Mobility Portable Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 428.00 lbs.
Shipping Weight 551.00 lbs.
Length 43.00 in.
Width 30.00 in.
Height 41.00 in.

Adjustable Thermostat HX-0250

Operator is able to adjust outlet water temperature between 86°F-248°F
