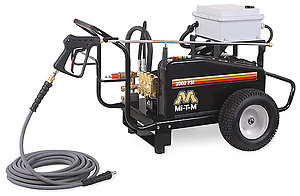

Premium Series Electric Portable Belt Drive DC-3005-W0E2G

DC-3005-W0E2G

Perfect for cleaning heavily soiled equipment located inside commercial facilities.  Use this unit to clean grimy floors and concrete walls or garages and service shops.  It's a great tool to keep indoor pools free from dirt, mold and mildew.

Pump: Belt drive triplex piston General pump with ceramic plungers · Stainless-steel and brass unloader with preset pressure · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection · External bypass system allows more water into the system to protect from heat build-up

Motor:  Totally enclosed fan-cooled electric motor with thermal overload protection · 10-foot power cord

Frame: Powder coated steel frame and base plate with tube handles · 13-inch flat-free tires · Enclosed belt guard

Component:  Heavy-duty dual cogged belt drive system

Unit Includes: Quick connect nozzles - 0º, 15º, 25º and 40º · 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors · Insulated trigger gun with safety lock-off · 36-inch lance with rubber grip

Specifications

PSI 3000
GPM 4.8
Horsepower/Motor 10.0 HP, 230V, 1Ø, 41.5A
Pump General
Unloader Factory preset
Plug Type NEMA 6-50P
Lance 36in.
Drive Type Belt Drive Pressure Washers
Mobility Portable Pressure Washers
Water Temperature Cold Water Pressure Washers

Weights & Dimensions

Net Weight 396.00 lbs.
Shipping Weight 470.00 lbs.
Length 45.50 in.
Width 32.50 in.
Height 30.00 in.

Insulated Dual Lance CX-0005

Has both a high and low pressure top that allows you to switch to the low pressure chemical injector without having to change tips - 36-inch

Stationary Option CX-0094

This option will remove the existing tall handle and wheels, which will be replaced with a short handle and rubber feet for stationary applications
