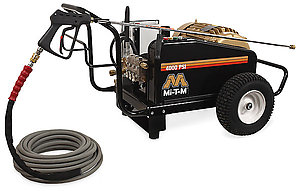

Premium Series Electric Portable Belt Drive DC-4004-W1E3G

DC-4004-W1E3G

Perfect for cleaning heavily soiled equipment located inside commercial facilities.  Use this unit to clean grimy floors and concrete walls or garages and service shops.  It's a great tool to keep indoor pools free from dirt, mold and mildew.

Pump: Belt drive triplex piston General pump with ceramic plungers · Stainless-steel and brass Mi-T-M unloader with preset pressure · Forged brass manifold · Thermal relief valve · Water filter with clear sleeve for screen inspection · External bypass system allows more water into the system to protect from heat build-up

Motor:  Totally enclosed fan-cooled electric motor with thermal overload protection · 10-foot power cord

Frame: Powder coated steel frame and base plate with tube handles · 13-inch flat-free tires · Enclosed belt guard

Component:  Heavy-duty dual cogged belt drive system

Unit Includes: Quick connect nozzles - 0º, 15º, 25º and 40º · 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors · Insulated trigger gun with safety lock-off · 48-inch lance with rubber grip

Specifications

PSI 4000
GPM 3.9
Horsepower/Motor 15.0 HP, 230V, 3Ø, 40.0A or 15.0 HP, 460V, 3Ø, 20.0A
Pump General
Unloader Mi-T-M, factory preset
Plug Type NEMA 15-50P
Lance 48in.
Drive Type Belt Drive Pressure Washers
Mobility Portable Pressure Washers
Water Temperature Cold Water Pressure Washers

Weights & Dimensions

Net Weight 431.00 lbs.
Shipping Weight 505.00 lbs.
Length 45.50 in.
Width 32.50 in.
Height 30.00 in.

460V on 15.0 HP, 3 Phase Models CX-0057

For when you have 460V of power available

Stationary Option CX-0094

This option will remove the existing tall handle and wheels, which will be replaced with a short handle and rubber feet for stationary applications
