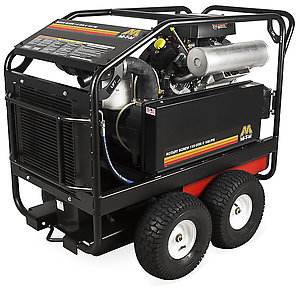

Rotary Screw Single Stage Gasoline AR1-PK37-M

AR1-PK37-M

Powered by industry proven components, the patented Mi-T-M Rotary Screw Compressor works great in a wide variety of applications.  This compact machine produces 115 CFM at 100 PSI, and the 10-1/2-gallon fuel tank gives you the extended run time needed on many jobsites.

Compressor Pump: Integrated air/oil separator · Integrated thermostatic bypass valve · Integrated oil filter · Poly Chain® belt drive system · Easy-to-read oil level indicator · High oil temperature shutdown

Engine: Electric start - battery and cables included · Low-oil level shutdown

Frame: Powder coated steel frame with 1-1/4-inch roll cage, handle, 4-point lifting hook, winch point and tie-down anchors · 15-inch pneumatic tires

Components: 10-1/2 gallon aluminized steel fuel tank · Oil cooler with guard · Pressure gauge · Ball valve controlled 3/4-inch outlet · Adjustable pilot valve changes engine RPM based on air demand

Specifications

CFM @ PSI 115 @ 100
Displacement/Engine 999cc Kohler CH1000 OHV
Compressor Single stage, rotary screw
Engine Idle Control Pneumatic
Mobility Portable Air Compressors
Stage Single Stage Air Compressors

Weights & Dimensions

Net Weight 698.00 lbs.
Shipping Weight 770.00 lbs.
Length 50.75 in.
Width 30.50 in.
Height 43.50 in.

Skid Feet AX-0076

Stationary applications
