HDC-3505-0B7G

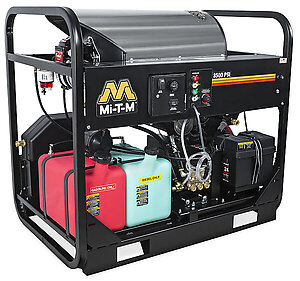

This hot water belt drive skid is one of the most efficient and cost effective pressure washers you can buy.  The heavy-duty frame means you can take it to any jobsite and it will hold up to the demands of the job.

Pump: Belt drive triplex piston General pump with ceramic plungers · Adjustable high pressure detergent injector

Engine: Performance-proven industrial diesel engine with electric start - battery not included

Frame: Heavy-duty powder coated steel square tube skid frame · Stainless-steel coil wrap prevents rusting

Components: Stainless-steel coil wrap heat exchanger with 1/2-inch schedule 80 pipe coil · Polyethylene engine and burner fuel tanks · 12V burner - battery not included · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · Large polyethylene float tank

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off

Specifications

PSI 3500
GPM 4.7
Horsepower/Engine 16.8 HP Kubota Z602 OHV
Pump General
Engine Fuel Tank Capacity 10.0 gallons
Burner Fuel Tank Capacity 10.0 gallons
Burner Fuel Consumption 2.76 gph
BTU Per Hour 386,400
Drive Type Belt Drive Pressure Washers
Water Temperature Hot Water Pressure Washers
Mobility Portable Pressure Washers

Weights & Dimensions

Net Weight 836.00 lbs.
Shipping Weight 940.00 lbs.
Length 56.50 in.
Width 33.50 in.
Height 44.50 in.

Three-Way Ball Valve HX-0130

Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever

Four-Point Lifting Capability HX-0147

Allows unit to be lifted by crane

Hour Meter HX-0156

Displays the number of hours unit has been in operation

Trapping Unloader HX-0200

For longer hose runs and cleaning elevated areas

Adjustable Temperature Control HX-0212

Operator is able to adjust outlet water temperature between 96°F-250°F

Clutch Drive Pump HX-0230

Stops the pump from spinning in bypass mode and helps to extend the life of the pump, changes GPM to 4.3 when added to the unit

Clutch Drive Pump HX-0266

Stops the pump from spinning in bypass mode and helps to extend the life of the pump, standard flow rate

30-Gallon Diesel Fuel Tank HX-0282

Supplies fuel to engine and burner
