HDC-4004-1H6A

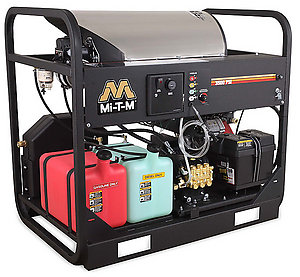

This hot water belt drive skid is one of the most efficient and cost effective pressure washers you can buy.  The heavy-duty frame means you can take it to any jobsite and it will hold up to the demands of the job.

Pump: Belt drive triplex piston AR pump with ceramic plungers · Adjustable high pressure detergent injector

Engine: Performance-proven industrial gasoline engine with electric start - battery not included

Frame: Heavy-duty powder coated steel square tube skid frame · Stainless-steel coil wrap prevents rusting

Components: Stainless-steel wrap heat exchanger with 1/2-inch schedule 80 pipe coil · Polyethylene engine and burner fuel tanks · 12V Beckett burner - no need for generator - battery not included · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · Large polyethylene float tank

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off

Specifications

PSI 4000
GPM 4.0
Displacement/Engine GX630 Honda OHV
Pump AR
Engine Fuel Tank Capacity 10.0 gallon
Burner Fuel Tank Capacity 10.0 gallon
Burner Fuel Consumption 2.45 gph
BTU Per Hour 343,000
Drive Type Belt Drive Pressure Washers
Mobility Stationary Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 725.00 lbs.
Shipping Weight 844.00 lbs.
Length 50.00 in.
Width 34.00 in.
Height 46.00 in.

Three-Way Ball Valve HX-0130

Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever

Four-Point Lifting Capability HX-0147

Allows unit to be lifted by crane

Hour Meter HX-0156

Displays the number of hours unit has been in operation

Adjustable Temperature Control HX-0212

Operator is able to adjust outlet water temperature between 96°F-250°F
