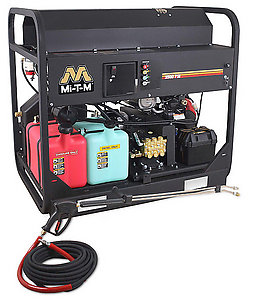

HVS-3506-0K6G

Just as powerful as the HDS Series, the HVS Series offers some of the same features at a more affordable option.  Just as effective for tough cleaning applications with the same durable heavy-duty wrap around frame.

Pump: Belt drive triplex piston General pump with ceramic plungers · 80-mesh, high-volume, stainless-steel screen inlet water strainer

Engine:  Performance-proven industrial gasoline engine with electric start - battery not included

Frame: Heavy-duty powder coated steel square tube skid frame

Components: No.1 or No.2 diesel or kerosene fired burner (Not approved for bio-fuel) · 2900-watt generator for efficient power to the burner and controls · Horizontal schedule 80 pipe coil · High quality fuel filter/water separator ensures clean fuel supply · Pressure relief valve protects against excessive system pressure · Polyethylene burner and engine fuel tanks

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25°, 40° and fixed detergent nozzle · 50-foot x 3/8-inch steel wire-braided high pressure hose · Adjustable pressure insulated dual lance with fixed detergent nozzle · Professional-grade insulated trigger gun with safety lock-off

MSRP: $12,662.00

Specifications

PSI 3500
GPM 5.6
Displacement/Engine 725cc Kohler CH730 OHV
Engine Fuel Tank Capacity 10.0 gallon
Burner Fuel Tank Capacity 10.0 gallon
Burner Fuel Consumption 3.37 gph
BTU Per Hour 471,800
Drive Type Belt Drive Pressure Washers
Mobility Stationary Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 760.00 lbs.
Shipping Weight 864.00 lbs.
Length 50.00 in.
Width 34.00 in.
Height 46.00 in.

Three-Way Ball Valve HX-0130

Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever

High Pressure Detergent Injector (K7) HX-0131

Supplies soap injection through the high pressure pump while spraying; pressure washers with K7 flow actuated unloaders only

Trapping Unloader HX-0143

For longer hose runs and cleaning elevated areas

Adjustable Thermostat HX-0145

Operator is able to adjust outlet water temperature between 86°F-248°F

Hour Meter HX-0146

Displays the number of hours unit has been in operation

Four-Point Lifting Capability HX-0147

Allows unit to be lifted by crane

Dual Gun HX-0149*

Two guns may be sprayed at the same time, flow is divided between the two guns while each operator maintains equal system pressure
*Requires trapping unloader. Consult factory before ordering this option.

Stainless-Steel Frame HX-0198

Converts powder coated painted frame to stainless-steel material

Clutch Drive Pump HX-0265

Stops the pump from spinning in bypass mode and helps to extend the life of the pump; standard flow rate
