HDD-3804-0V6A

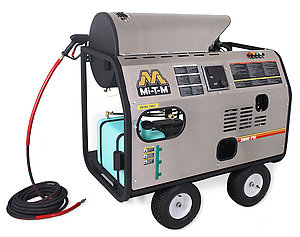

The most versatile of all hot water pressure washers, these compact skids are extremely portable and fit through a 30-inch doorway.  Perfect for agriculture and construction applications where mobility is a must.

Pump: Direct drive triplex piston AR pump · Low pressure detergent injector

Engine: Performance-proven gasoline engine

Frame: Powder coated steel square tube skid frame · Stainless-steel removable front panel · Optional wheel kit with locking tire brake, four tires and solid steel threaded axles

Components: Stainless-steel coil wrap heat exchanger with horizontal schedule 80 pipe coil · 12V Beckett burner - no need for a generator - battery not included · No. 1 or No.2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous: Adjustable thermostat · Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch high pressure hose · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off

Specifications

PSI 3800
GPM 3.8
Displacement/Engine 480cc Vanguard OHV
Engine Fuel Tank Capacity 10.0 gallon
Burner Fuel Tank Capacity 10.0 gallon
Burner Fuel Consumption 2.45 gph
BTU Per Hour 343,000
Drive Type Direct Drive Pressure Washers
Mobility Stationary Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 558.00 lbs.
Shipping Weight 677.00 lbs.
Length 53.50 in.
Width 28.75 in.
Height 42.00 in.

Hour Meter HX-0156

Displays the number of hours unit has been in operation

250°F Steam HX-0172

Increases outlet temperature to 250°F

Panel Engine Key Switch HX-0222

Moves engine key switch from engine to front panel

Trapping Unloader HX-0225

For longer hose runs and cleaning elevated areas

Three-Way Ball Valve HX-0226

Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball lever valve

High Pressure Chemical (trapping unloader) HX-0221*

Adjustable high pressure chemical, includes float tank
*Consult factory before ordering this option.
