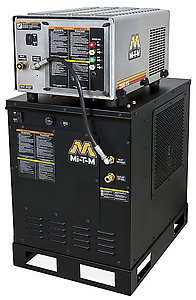

Stationary All-Electric Belt Drive DHA Series DH-2503-AE0E4G

DH-2503-AE0E4G

The industrial all-electric hot water pressure washer removes dirt, grime and residue from indoor facilities where frequent cleaning and sanitizing are necessities.  The innovative heat exchanger cartridge provides consistent and efficient on-demand hot water.

Pump: Factory preset unloader · Stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve

Motor: Open drip-proof electric motor · On/Off power switch

Frame: Stainless-steel base and frame with rubber isolators

Component: Time delay shutdown

Heat Exchanger: Used for consistent and efficient on-demand hot water · 120°F to 130°F temperature rise above in-take water, obtained within 3 to 5 minutes · Adjustable thermostat · On/Off power switch · Powder coated steel frame · Revolutionary cartridge design · Low maintenance, stainless-steel coils in aluminum casings for maximum efficiencies · Eliminates constant cleaning · Eliminates heat loss

Unit Includes: Quick connect nozzles - 0°, 15°, 25° & 40° · External downstream detergent injector, AW-8400-0021, with detergent nozzle · 50-foot x 3/8-inch wire-braided high pressure black hose · Professional-grade insulated trigger gun with safety lock-off · Adjustable pressure insulated dual lance

Specifications

PSI 2500
GPM 2.8
Horsepower/Motor 6.0 HP, 460V, 3Ø
Unit Amperage 66.0A
Pump General
Heater kW 48
Temperature Rise 120°F
Drive Type Belt Drive Pressure Washers
Mobility Stationary Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 625.00 lbs.
Shipping Weight 725.00 lbs.
Length 36.00 in.
Width 25.00 in.
Height 49.00 in.

Auto Start/Stop CX-0069

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

Remote Box CX-0078

Adds control box which may be mounted away from unit to control on/off, not available on models with auto start/stop
