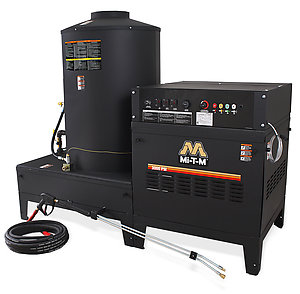

This super-efficient, high volume hot water series is the perfect choice when it comes to the most demanding cleaning jobs. This machine was designed to tackle heavy and solid dirt, oil and the worst grime.
Pump: Belt drive triplex General pump with ceramic plungers
Motor: Open drip-proof electric motor with manual thermal overload protection
Frame: Powder coated steel frame with removable side panels
Components: 1/2-inch schedule 80 pipe coil with 8-pancake heat exchanger · Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 12-inch draft diverter · Electronic ignition with intermittent pilot · Adjustable outlet thermostat for main temperature control · Hour meter · Polyethylene float tank (8-gallon with in-line screen filter) · Time delay shutdown will automatically shut off unit when trigger is released and timer reaches setting
Miscellaneous: Unique coil design allows thermostat to sense upstream water temperature to regulate outlet temperatures preventing large temperature swings · Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes: Quick connect nozzles - 0°, 15°, 25°, 40° and fixed detergent nozzle · 50-foot x 3/8-inch steel wire-braided high pressure hose with swivel and bend restrictors · Adjustable pressure insulated dual lance with fixed detergent nozzle · Professional-grade insulated trigger gun with safety lock-off
MSRP: $19,080.00
| PSI | 3000 |
| GPM | 7.8 |
| Horsepower/Motor | 15.0 HP, 460V, 3Ø, 20.3A |
| Natural Gas BTU per hour | 650,000 |
| LP Gas BTU per hour | 619,500 |
| Drive Type | Belt Drive Pressure Washers |
| Mobility | Stationary Pressure Washers |
| Water Temperature | Hot Water Pressure Washers |
| Net Weight | 1057.00 lbs. |
| Shipping Weight | 1207.00 lbs. |
| Length | 70.00 in. |
| Width | 34.75 in. |
| Height | 54.50 in. |
Liquid Propane (vapor only) HX-0180
Converts natural gas pressure washer to operate on liquid propane (vapor only)
Auto Start/Stop HX-0181
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
(1) Remote Station HX-0182
Adds control box which may be mounted away from unit to control on/off, burner and soap injection
Additional Remotes (up to 3) HX-0183
Additional remotes that may be added to unit after the first remote is installed
Stainless-Steel Access Panels HX-0187
Converts powder coated painted access panels to stainless-steel material
Stainless-Steel Coil Wrap HX-0188
Changes powder coated coil wrap to a stainless-steel coil wrap
Balanced Temperature Control HX-0267
Thermostat in heating coil anticipates spiking temperature and cycles the burner to maintain steady outlet temperatures
Dual Gun HX-0269
Two guns may be sprayed at the same time, flow is divided between the two guns while each operator maintains equal system pressure; includes balanced temperature control option HX-0267
