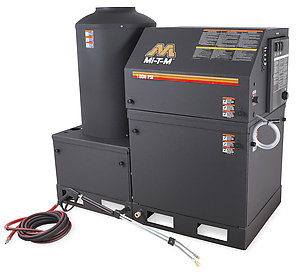

Stationary Natural Gas/LP Belt Drive HEG Series HEG-1805-0E3G

HEG-1805-0E3G

Designed to accommodate and clean heavily soiled vehicles and industrial equipment, this system is perfect for a wash bay set up.  Efficient and rugged, the HEG Series is one of the best on the market.

Pump: Belt drive triplex piston General pump with ceramic plungers · Thermal relief valve

Motor: Open drip-proof electric motor with manual thermal overload protection

Frame: Powder coated steel frame with removable side panels

Components: 1/2-inch schedule 80 pipe coil with heat exchanger · Natural gas or LP gas-fired (vapor only) natural draft with aspirating-type burner, 10-inch draft diverter · 24V control system · Adjustable thermostat · Pressure switch and over-pressure safety controls · Polyethylene float tank (4-gallon with in-line screen filter) · Electronic ignition with standing pilot light

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F (250°F/121°C outlet temperature with steam option)

Unit Includes: Quick connect nozzles - 0°, 15°, 25°, 40° and fixed detergent nozzle · 50-foot x 3/8-inch steel wire-braided high pressure hose · Adjustable pressure insulated dual lance with fixed detergent nozzle · Professional-grade insulated trigger gun with safety lock-off

Specifications

PSI 1800
GPM 4.7
Horsepower/Motor 6.0 HP, 230V, 3Ø, 16.0A
Natural Gas BTU per hour 338,000
LP Gas BTU per hour 326,000
Drive Type Belt Drive Pressure Washers
Mobility Stationary Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 724.00 lbs.
Shipping Weight 844.00 lbs.
Length 56.50 in.
Width 29.00 in.
Height 49.75 in.

Liquid Propane (vapor only) HX-0105

Converts natural gas pressure washer to operate on liquid propane (vapor only)

Hour Meter HX-0106

Displays number of hours unit has been in operation

Time Delay Shutdown HX-0107*

Timer will shut unit off automatically when trigger gun is released and timer reaches setting
*Consult factory before ordering this option.

(1) Remote Station (auto start/stop N/A) HX-0108*

Adds control box which may be mounted away from unit to control on/off, burner and soap injection
*Consult factory before ordering this option.

Time Delay Shutdown and First Remote Box HX-0109*

Timer will shut unit off automatically when trigger gun is released and timer reaches setting; Adds control box which may be mounted away from unit to control on/off, burner and soap injection
*Consult factory before ordering this option.

Additional Remotes (up to 3) HX-0110

Additional remotes that may be added to unit after the first remote is installed

Auto Start/Stop HX-0111

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

K7 Unloader, Flow Activated (auto start/stop N/A) HX-0112

Converts pressure trapping unloader system to flow actuated K7 unloader. Pressure is not trapping in the discharge line when trigger is released.

Dual Gun HX-0113

Two guns may be sprayed at the same time, flow is divided between the two guns while each operator maintains equal system pressure

Stainless-Steel Access Panels HX-0115

Converts powder coated painted access panels to stainless-steel material

Stainless-Steel Coil Wrap HX-0116

Converts powder coated painted coil wrap to stainless-steel material

Painted Box Kit HX-0117

Adds painted side and end panels

Painted Stainless-Steel Box Kit HX-0118

Adds stainless-steel side panels and painted end panels

250°F Steam HX-0119

Steam option adjusts unloader valve counter-clockwise increasing outlet temperature to 250°F while lowering system pressure

Auto Start/Stop and First Remote HX-0124

When trigger gun is released timer will turn unit off, when trigger gun is pulled unit will restart; Adds control box which may be mounted away from unit to control on/off, burner and soap injection

All Stainless-Steel Frame and Hardware on Modular Units HX-0154

Converts powder coated painted frame and hardware to stainless-steel material

Elevated Float Tank, 5.0 GPM HX-0217

Float tank is located at the back of the unit
