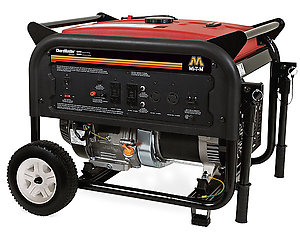

Featuring 3600, 6000 and 8000-watt generators, the ChoreMaster® Series come with a Mi-T-M OHV engine and are designed to provide maximum power for contractors and electrical back-up for power outages.
Engine: Mi-T-M OHV engine low-oil shutdown engine · Recoil starting system · Automatic idle control
Alternator: Brushed 120V/240V alternator · Copper and aluminum windings · Total harmonic distortion (THD) less than 6%
Frame: Low profile, compact design · Wraparound frame with 1-inch steel tubing · Wheel kit with tires and rubber gripped handles
Components: Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Large low-tone mufflers · Engine on/off switch · Fuel shut-off valve · DC/battery charging
*Dimensions include the wheel kit with the handles in the down position.
| Maximum AC Output | 6000 watts |
| Rated AC Output | 5500 watts |
| Displacement/Engine | 389cc Mi-T-M OHV |
| Alternator | Brushed 120V/240V, 60Hz |
| Maximum Amps (120V/240V) | 50.0/25.0 |
| Continuous Amps (120V/240V) | 45.8/22.9 |
| Receptacles | (2) 120V 20A GFCI duplex; (1) 120V 30A twist lock; (1) 120V/240V 30A twist lock |
| Circuit Breakers | (1) Main circuit breaker; (2) 20A circuit breaker, single pole; (1) 10A DC breaker |
| Rated Speed | 3600 RPM |
| Fuel Capacity | 6.6 gallon |
| Run Time (at full load) | 6.5 hours |
| Idle Control | Yes |
| Wheel Kit | Yes, includes tires and rubber gripped handles |
| Net Weight | 180.00 lbs. |
| Shipping Weight | 228.00 lbs. |
| Length | 39.10 in. |
| Width | 28.70 in. |
| Height | 30.60 in. |
