Separates water, grass and heavy debris.

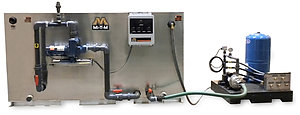

Mi-T-M’s popular BIO Series System utilizes fixed-film bacteria in conjunction with coalescing media. Various tank sizes and flow rates are used to create retention time for the treatment of wastewater systems. Oxygen is supplied to the bacteria in the waste stream by venturi injection.
This system offers models available for Recycle or Discharge Operations. Each unit offers added benefits, such as:
·Low maintenance
·Low operating costs
·Simple equipment operation
·CSA approved control panel which meets the requirements of the US and Canadian standards for an Industrial Control Panel
The BIO Series is perfect for the following applications:
·Rental yards
·Heavy equipment dealers
·Trucking facilities
·Truck rental fleets
·Diesel repair facilities
·Forklift washing operations
·Aircraft maintenance and restoration
·Shipyards
·Municipalities/State DOTs
·Oil fields
·Engine rebuilders and manufacturers
·Military bases
·Golf courses
·and many more...
Components:
·CSA listed NEMA-4 rated corrosion-proof control panel for safe and reliable operation
·Hose connectors are clearly marked and designed for easy accessibility and quick installation
·Mazzei® venturi air injection system, 55-0126, sustains beneficial aerobic microbes while preventing bacteria from turning odorous and anaerobic
·Pressure manifold set-up option for BIO-20R-0M11 & BIO-20R-1M11 is standard
·Durable "True Union" valve
·Slope bottom tanks are standard on all BIO-20, BIO-25 & BIO-35 Models
·Aeration pump, 3-0397
·Transfer pump, 3-0399
Models Available:
BIO-20D-0M10 230V, 1Ø, 15.0A Marine Aluminum Discharge System
BIO-20D-1M10 230V, 1Ø, 15.0A Stainless-Steel Discharge System
BIO-20D-0M30 230V, 3Ø, 10.0A Marine Aluminum Discharge System
BIO-20D-1M30 230V, 3Ø, 10.0A Stainless-Steel Discharge System
BIO-20R-0M10 230V, 1Ø, 25.0A Marine Aluminum Recycle System
BIO-20R-1M10 230V, 1Ø, 25.0A Stainless-Steel Recycle System
BIO-20R-0M30 230V, 3Ø, 15.0A Marine Aluminum Recycle System
BIO-20R-1M30 230V, 3Ø, 15.0A Stainless-Steel Recycle System
BIO-20R-0M11 230V, 1Ø, 25.0A Marine Aluminum Recycle System
BIO-20R-1M11 230V, 1Ø, 25.0A Stainless-Steel Recycle System
BIO-20R-0M31 230V, 3Ø, 15.0A Marine Aluminum Recycle System
BIO-20R-1M31 230V, 3Ø, 15.0A Stainless-Steel Recycle System
D – Designates Discharge / R – Designates Recycle
230/208/460V 3-phase available
Power requirements reflect pump change
The Importance of a Proper Pit System:
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.
Consult Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.
| Flow Rate | 0-20 GPM |
| Biological Media | 2304 sq. ft. |
| Tank Capacity | 890-gallon |
| Sump Pump (Included) | 1/2 HP |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 1092.00 lbs. |
| Length | 96.00 in. |
| Width | 72.00 in. |
| Height | 48.00 in. |
pH Control System, 230V WX-0037
For when pH adjustment is needed
Pinch Valve Assembly WX-0014
Pinch valve, bladder style (used on cone-bottom tanks), 2-inch, 230VAC, single phase, may be accommodated as 115VAC, single phase
BIO Sump Pump Conversion WX-0100
Customized option, converts submersible pump to surface-mount sump pump
550-Gallon Product Tank Expansion WX-0029
For when larger volume of usable water is needed
Tank Heater WX-0031
Promotes heat for microbes, powered from main box, additional 20A required
Ozone WX-0040
For specialized applications where sterilization of the waste stream is desired
Ozone WX-0089
For specialized applications where sterilization of the waste stream is desired
Pinch Valve Assembly WX-0039
Pinch valve, bladder style (used on cone-bottom tanks), 2-inch, 120VAC, single phase
pH Control System, 120V WX-0102
For when pH adjustment is needed
Magnetic Drive Pump WX-0067
230V, 1Ø seal-less
Magnetic Drive Pump WX-0068
208-230V, 3Ø, seal-less
Magnetic Drive Pump WX-0069
460V, 3Ø, seal-less
Magnetic Drive Pump WX-0070
230V, 1Ø, seal-less
Magnetic Drive Pump WX-0071
208-230V, 3Ø, seal-less
Magnetic Drive Pump WX-0072
460V, 3Ø, seal-less
Epoxy-Lined Tank WX-0124
High solid polyamide epoxy-lined tanks is chemical and corrosion resistant
Epoxy-Lined Tank WX-0125
High solid polyamide epoxy-lined tank is chemical and corrosion resistant
High Solids Media WX-0120
Allows for debris to travel easily through media with vertical design
Hour Meter WX-0128
Displays the number of hours unit has been in operation
Heater, 230V WX-0136
Promotes heat for microbes, powered from main box, additional 20A required
Heater, 460V WX-0137
Promotes heat for microbes, powered from main box, additional 20A required
Heater, 230V WX-0138
Promotes heat for microbes, powered from main box, additional 20A required
Heater, 460V WX-0139
Promotes heat for microbes, powered from main box, additional 20A required
Dual pH Control, 230V WX-0134
Two set points where pH can be adjusted
Dual pH Control, 115V WX-0135
Two set points where pH can be adjusted
250-Gallon Auxiliary Poly Tank WX-0142
Allows you to treat the BIO water with ozone in a separate poly tank
