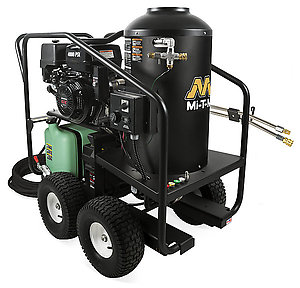

Portable Gasoline Belt Drive DHG Series DHG-4004-B0H6G

DHG-4004-B0H6G

The new 12V hot water gas pressure washer series may be compact but it is capable of cleaning the toughest grime. Completely portable, this 4000 PSI unit features a 12V Beckett burner with a 4-pancake bottom-fired heat exchanger.

Pump: Belt drive triplex piston General pump with ceramic plungers · Stainless-steel and brass unloader valve, adjustable · Forged brass manifold · Thermal relief valve

Engine: Performance proven engine with low-oil protection · 12V electric start (battery not included)

Frame: Reinforced powder coated steel tube frame with center balanced lifting hook · 15-inch pneumatic tires
Components: 1/2-inch schedule 80 pipe coil with 4-pancake bottom-fired heat exchanger · 12V Beckett burner · No.1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel) · Adjustable thermostat · Hour meter · 250°F steam

Miscellaneous: Temperature rise 130°F/54°C above ambient, maximum outlet temperature is 210°F · Water output temperature is 250°F in "wet" steam

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 1/4-inch MEG and 1/4-inch MQC wet steam nozzle - 25° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects, swivel and bend restrictors · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off

Specifications

PSI 4000
GPM 3.7
Displacement/Engine 389cc Honda GX390 OHV
Pump General
Gas Tank Capacity 1.61 gallons
Burner Fuel Tank Capacity 10 gallons
Burner Fuel Consumption 2.14 gph
BTU Per Hour 299,600
Drive Type Belt Drive Pressure Washers
Mobility Portable Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 520.00 lbs.
Shipping Weight 643.00 lbs.
Length 57.50 in.
Width 35.50 in.
Height 59.50 in.

Skid Feet HX-0171

Stationary applications

Stainless-Steel Coil Wrap HX-0273

Converts powder coated coil wrap to a stainless-steel coil wrap
