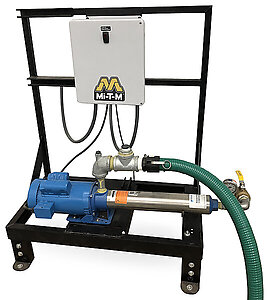

Undercarriage Wash System WCU-35-0ME1

WCU-35-0ME1

The ideal accessory for any wash bay, this system helps to remove mud and grime build up under vehicles and small equipment. Built in the USA, the durable power coated steel frame ensures longevity even in harsh conditions.

Features: Power coated frame with control box and pump · 8-foot long stainless-steel spray bar with 1-1/2 inch square tubing · 6-inch x 1/2-inch powder coated spray bar cover with nozzle holes · PLC controls for automatic pump operation with phot-eye and remote box · CSA Certified control box · Photo-eye with 10-foot maximum range · Twelve 15°, size 20 nozzles spaced 6-inches apart · Remote box for auto/manual operation of spray bar · 250-gallon holding tank, floats and supply plumbing

Specifications

GPM @ PSI 35 @ 110
Pump 3.0 HP
Power Requirements 230V, 1Ø, 15.0A
Spray Bar cover Dimensions (LxWxH) 96 x 6 x 0.5 inch
Pump Frame Dimensions (LxWxH) 4 x 3 x 5 foot
Holding Tank Dimensions (WxH) 36 x 62 inch

Weights & Dimensions

Net Weight 0.00 lbs.
Shipping Weight 450.00 lbs.
Length 48.00 in.
Width 36.00 in.
Height 60.00 in.
